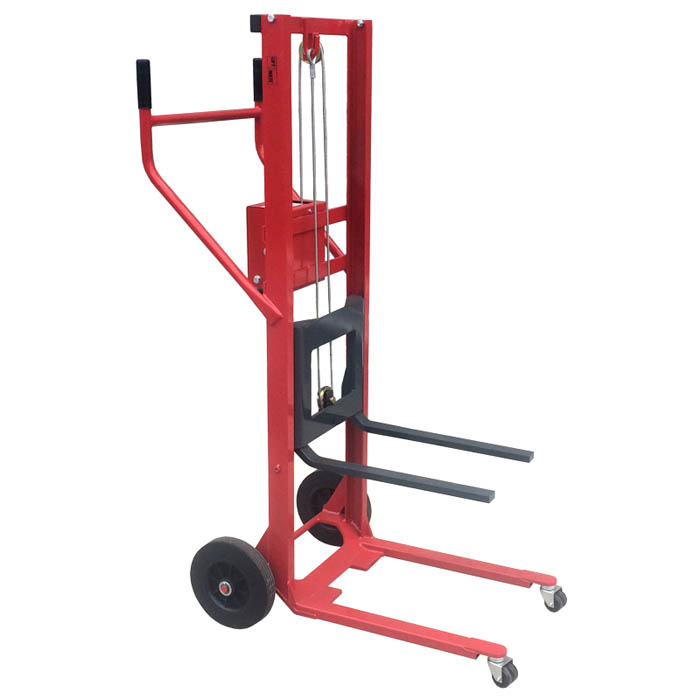

Mini Winch Stacker Ideal for lifting and moving boilers and other large loads Strong steel frame Zinc-plated steel self-braked winch Galvanized steel cable: ø 6 mm Epoxy paint finish Technical Specifications: Capacity: 250kg Lift: Manual Winch Max. Lift Height: 1250 mm Lowered Fork Height: 81 mm Length of Forks: 520 mm Single Fork Size: 40(W)mm x 20(H)mm Lift Per Crank Turn: 23 mm Overall Length: 960 mm Overall width: 630 mm Overall Height: 1580 mm Back Wheels: ø 260mm – Pneumatic or Solid Rubber Front Swivel Castors: ø 50 mm – Rubber Centre Distance of Fork Axis: 300 mm Approx. Weight: 68kg Optional Platform Size (L x W): 600 x 600 mm
