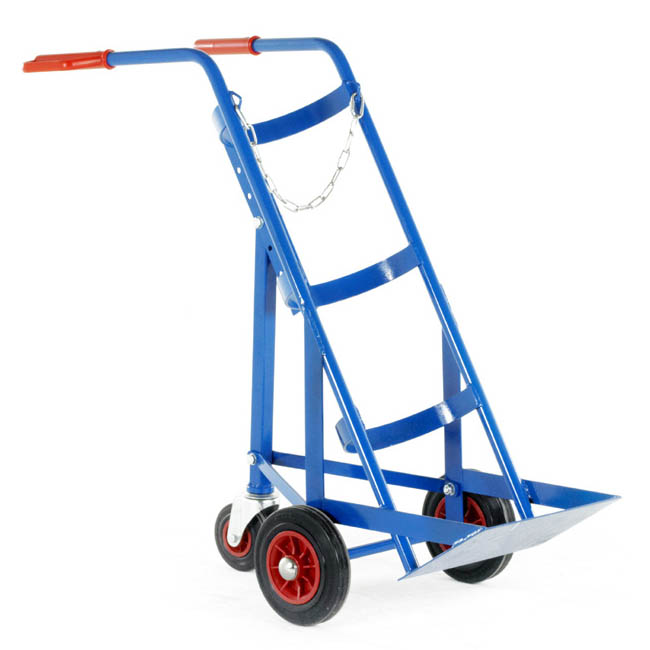

Tall Cylinder Support Truck – SC146

Tall Cylinder Support Truck Designed for cylinder size 230mm diameter Designed to carry cylinder loads on 3-wheel base Adjustable rake back Cylinders are easy to load with bottom flat foot plate Minimises operator fatigue and risk 200mm diameter wheels with roller bearings 125mm diameter rubber rear swivel castor Blue epoxy finish   Technical Specifications: Capacity: 200 kg Cylinder Size: ø 230 mm diameter Dimensions (H x W): 1140 x 430 mm Max. Overall Length: (Front-Rear) 1140 x 430 mm Wheels: Solid Rubber Wheels Diameter: ø 200 mm Approx. Weight: 25 kg 12-14 working weeks delivery time.
