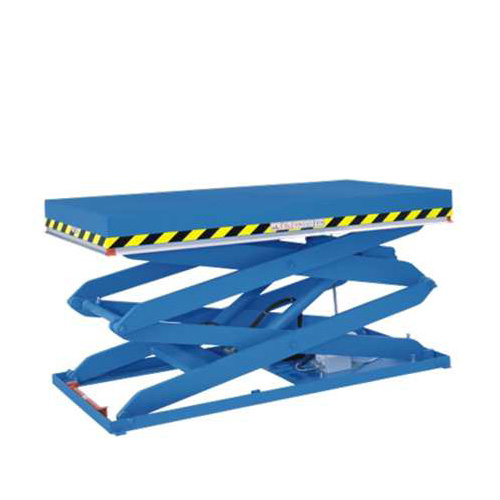

1000kg Double Static Scissor Lift Table LiftMate double static lift tables ELD are ideal for use where greater lifting heights and compact dimensions are required. The constructional modification results from its application. They are standard-equipped with the same fittings as the ELS. Technical Specifications: CAPACITY PLATFORM L x W (mm) SUB-FRAME L x W (mm) CLOSED HEIGHT RAISED HEIGHT LIFTING TIME APPROX. SEC POWER (KW) APPROX WEIGHT MODEL 1000 kg 1250 x 800 1250 x 750 350 mm 1950 mm 21 2.3 450 kg ELD 1-16-1 1000 kg 1500 x 800 1500 x 750 400 mm 2400 mm 26 2.3 600 kg ELD 1-20-5 1000 kg 2000 x 1000 2000 x 900 450 mm 3050 mm 37 2.3 900 kg ELD 1-26-9 Features: Operating voltage 400 V Control voltage 230 V Dead man’s control unit with manual push button control Compact hydraulic unit (10% power-on time) Tabletop made of smooth sheet metal Sub-frame made of angle section with securing brackets (not self-supporting) Platform as a fixed part of the upper frame Differential cylinder Running rollers, fixed-bearing, scissor and cylinder bolts easy to exchange Safety rail Maintenance-free roller bearing Lead time for these tables is usually 6-8 working weeks, if your order is time-sensitive, please contact us.
